Brand

Dixxen

S4

  • 메일
  • 다운로드
  • 유튜브

Special features

Transmits a clear warning broadcast to a maximum 3km long-distance target with a maximum 154dB sound pressure, located within 1m front (Peak value)

Technology features

  • 01. Equalizes sound directions based on directivity

    General speakers create an echo, overlapping sounds

    Directional speakers equalize the sound directions to minimize any overlapping sounds

  • 02. Minimizes echoes by taking into account the mirroring effect of the sounds

    Minimizes echoes when compared to general horns

  • 03. Replies occur at a consistent frequency

    Compression drivers with the ability to reply at a consistent frequency in an auditory perceptive region

  • 04. Reaches the STI of 0.46 or above on average in tunnels

    ※ STI (Speech Transmission Index)

Product Composition

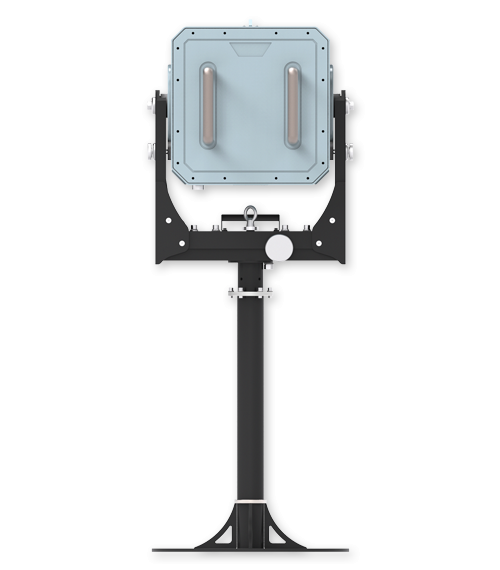

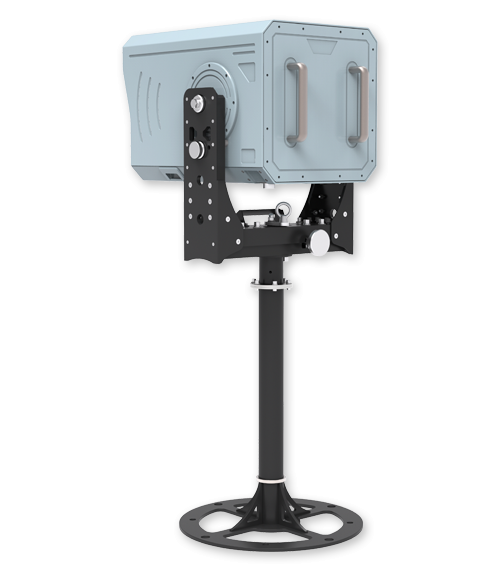

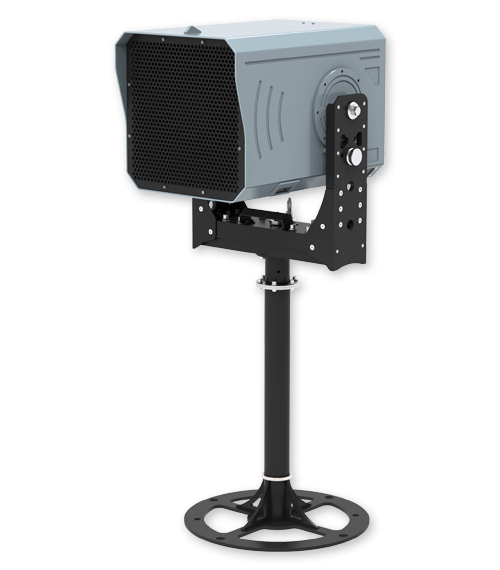

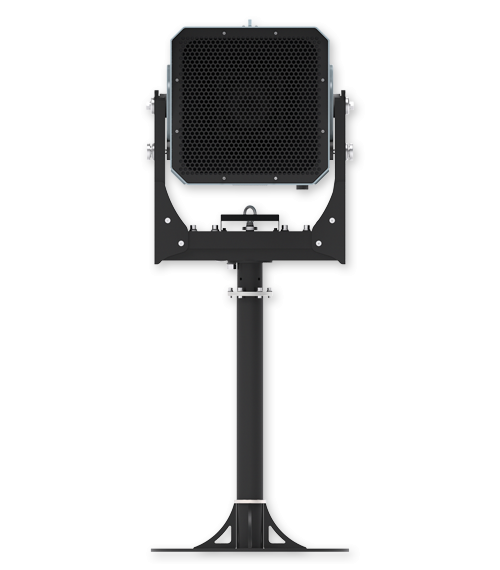

High-powered acoustic hailing speaker
Amplifier

Specification

Maximum sound pressure (Peak value) 154 dB @1m front (Peak)
Pointing angle ±15°
Maximum transmission distance ~3,000m
Guaranteed distance for the voice transmission ~1,000m
Frequency range 120Hz ~ 5kHz
